Network pics thread

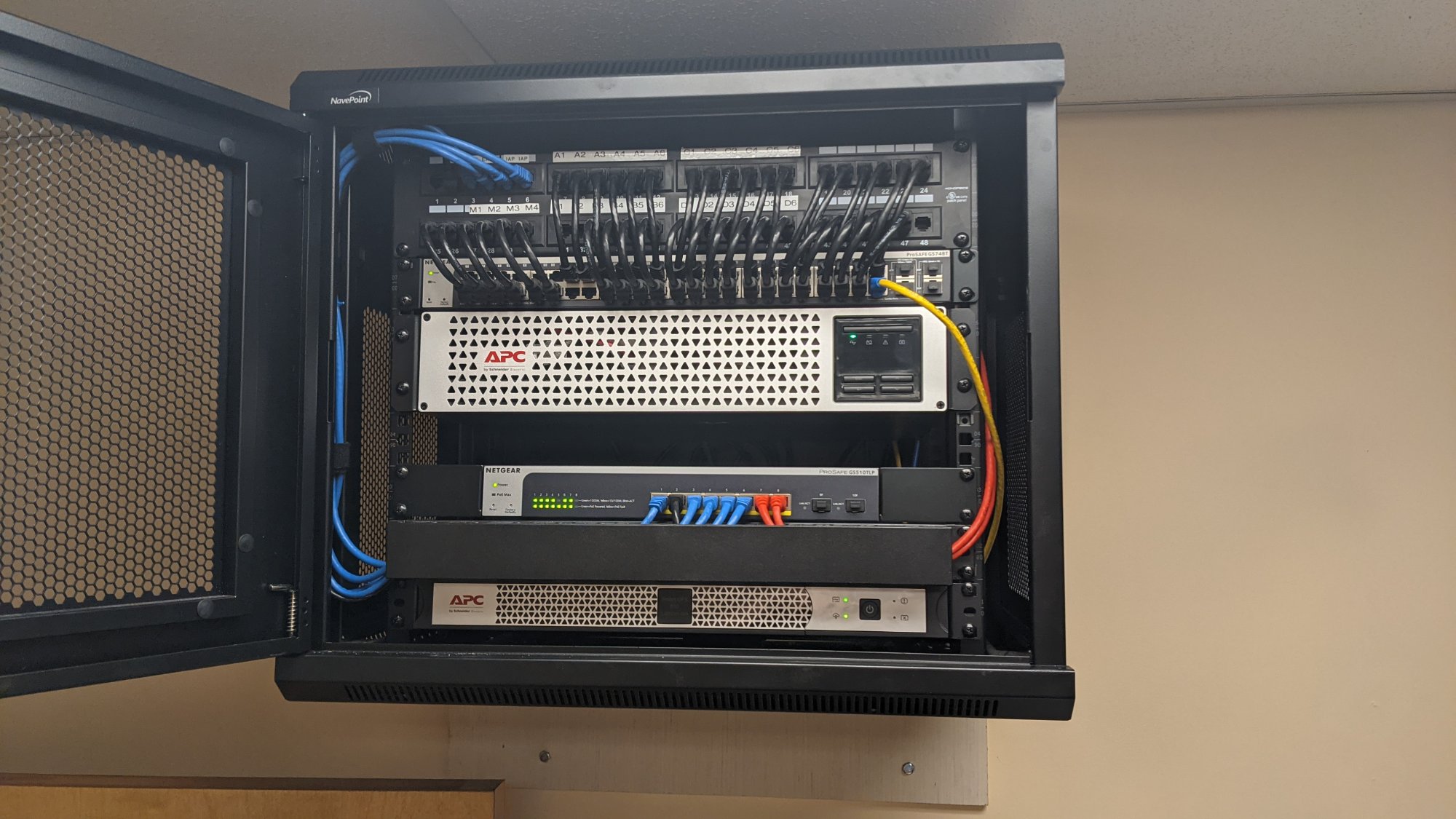

One of the network cabinets at my work i did. Contents (Top to Bottom) 48 port Cat 6 patch panel, Netgear GS748T, APC SMTL750RM2UC, Netgear GS510TPP, APC SCL500RM1UC.

Yellow wire bugs me too, just not had time to put it in the patch panel..yet!

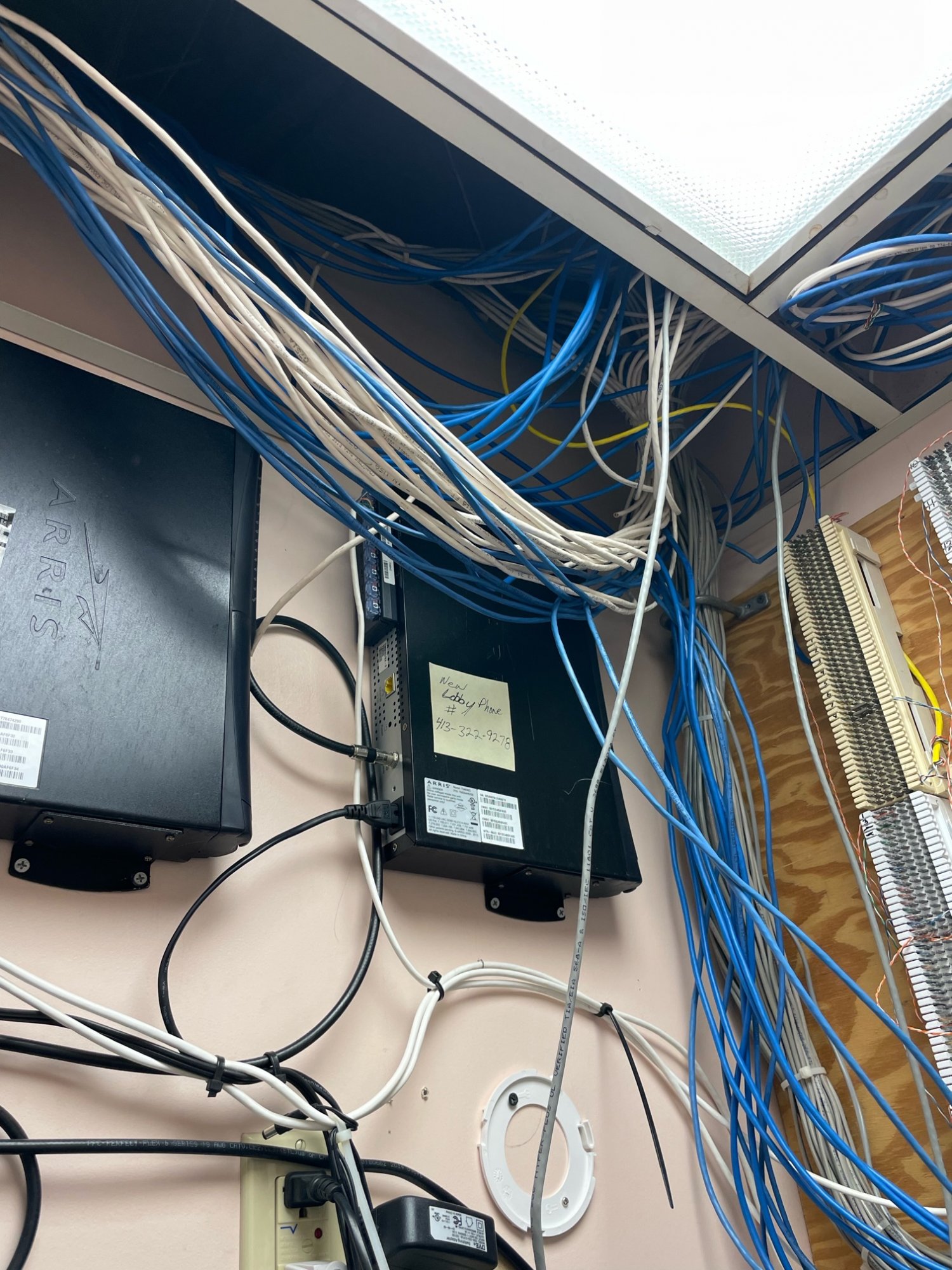

i saw that and was wondering who that even works? it is all getting taken out and replaced. real patch panels, cisco switches, filer connection, ip cameras.

ziggo0 said:
analog cameras over cat5 is the real crime here
Click to expand...
And those splices that the last time I saw was in our first hotel that was built in the 1950s and telephone from the 1970s

Fun fact: I actually used an actually AT&T 'switchboard' with the pull cables that were tip and ring when growing up. That thing was still working when replaced with a candela microswitch pbx, and man I wish we still had it--amazingly reliable as it was on 24x7 for decades without a hiccup--beautiful piece of analog technology.

Keeping this ancient thread alive...

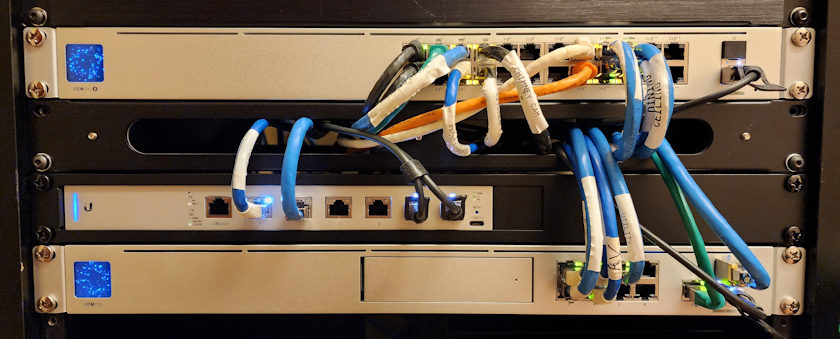

My recently revised home network rack.
Unifi UDM-Pro
Unifi USW-Pro-24-PoE
Unifi US-XG-6PoE
2 Unifi U6-Pro WAPs + 1 U6 Mesh (out in the garage)
Primary broadband: Sonic 10G Fiber (only $50/month!)
Failover broadband: Comcast 1G
Both of my PCs have Intel X550-T2 NICs

(please forgive the messy cabling, it's not pretty but it functions perfectly)



MinPins said:
Keeping this ancient thread alive...
My recently revised home network rack.
Unifi UDM-Pro
Unifi USW-Pro-24-PoE
Unifi US-XG-6PoE
2 Unifi U6-Pro WAPs + 1 U6 Mesh (out in the garage)
Primary broadband: Sonic 10G Fiber (only $50/month!)
Failover broadband: Comcast 1G
Both of my PCs have Intel X550-T2 NICs

(please forgive the messy cabling, it's not pretty but it functions perfectly)


View attachment 539661View attachment 539663
Click to expand...

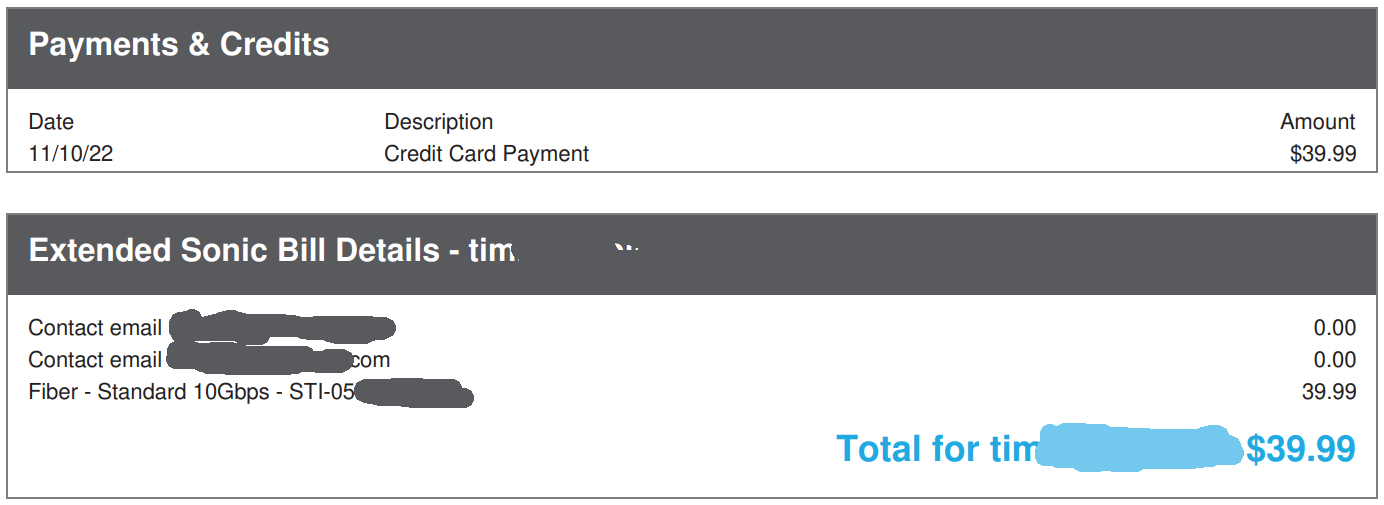

How in the hell do you get 10GB for 50$???!!!!!!

ATT 1Gig Fiber, with passthrough to Asus AX82u router and Dell X1026 switch that was an impulse buy for $43


Attachments

  • 20241119_182200.jpg
    203.5 KB · Views: 0
My home network all crammed into a 42" OnQ in-wall media cabinet.
Here's all the stuff I have in there:
  • Ubiquity Unify Gateway Max
  • NOKIA NKFN11AEL Fiber Modem
  • xfinity XER10 Wifi7 10G router (Required for their 2Gb fiber service)
  • TP-Link Deco XE75 Wifi 6e AP
  • 2x D-Link 2.5g switches that work with my older CAT5e, allowing me to get 2.5Gb without replacing my wiring.
  • 370W UPS
I also have too many power bricks and not enough battery backed ports on the UPS.
